Small rotary furnaces, with their advantages of dynamic mixing and uniform heat transfer, have become the core equipment for laboratory material preparation, catalytic reactions, pyrolysis processes, and other research. Let's take a detailed look below!

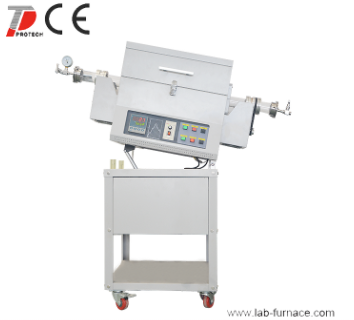

A commonly used small-scale experimental rotary furnace (click on the image to view product details)

Working principle
By rotating the drum, powder, particles, or small materials can undergo dynamic reactions such as calcination, sintering, and reduction, avoiding local overheating or uneven reactions caused by static accumulation. This is especially suitable for experimental scenarios that require uniform mixing and heat transfer.

Equipment features
Automation and operational convenience: The equipment adopts a touch screen and PLC control system, which can be operated intelligently with one click, and the graphic and textual interface is simple and convenient. The furnace body can be tilted, the furnace tube can rotate continuously, and there are quartz baffles on the inner wall of the tube to help the powder flip and promote more uniform sintering. The upper cover can be opened for quick cooling.
Safety and reliability: The furnace body is tilted and interlocked in an up and down position, ensuring safety and reliability; Adopting KF fast flange sealing, easy and fast operation; The furnace cover can be opened for real-time observation of the sintering status of the heated material; Reserved quick interfaces for vacuum and gas paths, which can be used in conjunction with vacuum systems and mixed gas systems; The upper cover automatically shuts off when opened, with functions such as super temperature and thermocouple protection alarm, power-off, and leakage protection.
Flexible configuration: Optional quality mixing system, various vacuum systems, exhaust gas treatment system, and gas preheating to meet different process requirements.

Main purpose and scope of application
Battery materials: mainly used for the coating process of lithium battery negative electrode materials, it is an ideal equipment for laboratory coating process development.
Other materials: Suitable for laboratory calcination and drying of powder materials and granular materials without strong acidity or alkalinity.

Selection reference dimension
Temperature requirements: Choose resistance wire heating for temperatures ≤ 1100 ℃, and silicon molybdenum rod for temperatures>1100 ℃ (such as 1400 ℃ high temperature experiment);
Material characteristics: Low speed and high inclination angle for powder form (to prevent dust), medium speed and medium inclination angle for granular form (to improve mixing efficiency);
Atmosphere requirement: A double-layer water-cooled furnace body and mechanical pump (such as semiconductor material annealing) should be selected for a vacuum environment.

Safety operation standards
Before starting up, check the grounding of the furnace body, the airtightness of the gas pipeline (check the interface with soapy water), and the insertion depth of the thermocouple (at 1/3 radius from the furnace wall);
Heating program: Heat up from room temperature at a rate of 5-10 ℃/min to avoid rapid heating causing deformation of the furnace body;
Atmosphere control: Vacuum or replace with N ₂ three times before introducing combustible gas to prevent explosion (such as controlling oxygen content<0.1% in H ₂ atmosphere).

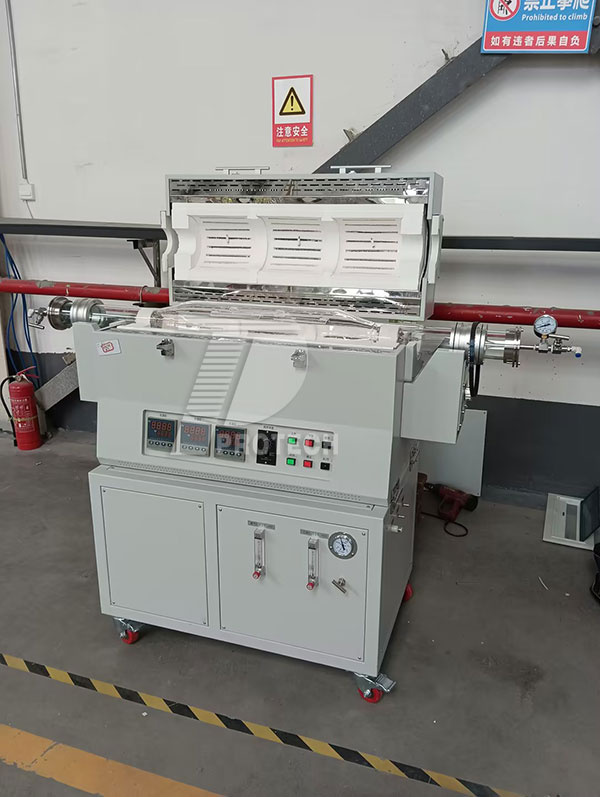

Three temperature zone small experimental rotary furnace (click on the picture to view product details)

Summary
Small rotary furnaces, with their advantages of dynamic mixing and uniform heat transfer, have become the core equipment for laboratory material preparation, catalytic reactions, pyrolysis processes, and other research. When selecting, it is necessary to accurately match parameters based on temperature, atmosphere, and material characteristics, and strictly follow safety regulations during operation. In the future, with the integration of intelligent technology, it will play a more important role in cutting-edge fields such as new energy and nanomaterials.Click to learn more Rotary tube furnaces! Or click on online customer service to learn more about product information!
