When choosing a CVD (Chemical Vapor Deposition) tube furnace in university experiments, multiple factors such as experimental requirements, equipment performance, safety, and after-sales service need to be comprehensively considered. Let's analyze it in detail below!

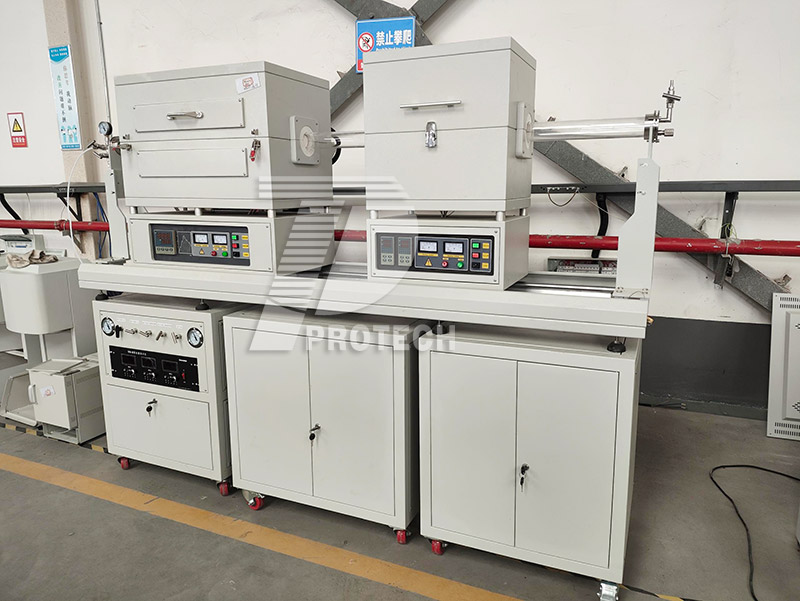

A commonly used experimental three temperature zone CVD tube furnace (click on the image to view product details)

1. Clarify experimental requirements
Application type: Determine the specific application of CVD tube furnace, such as growing thin films, synthesizing nanomaterials, preparing coatings, etc. Different applications may require different types of CVD furnaces, such as low-pressure CVD, plasma enhanced chemical vapor deposition (PECVD), etc.
Material type: Select a suitable CVD furnace based on the characteristics and properties of the required material. For example, organic materials may require low-temperature CVD, while inorganic materials may require high-temperature CVD.
Temperature range: Determine the maximum temperature and continuous operating temperature required for the experiment. Different CVD tube furnaces have different maximum and minimum temperature limits, and it is necessary to choose a furnace that can meet the experimental requirements.

2. Pay attention to device performance
Furnace tube material: The material of the furnace tube has a significant impact on the CVD process. Common furnace tube materials include quartz, corundum, and metal. Quartz furnace tubes are suitable for high temperature and corrosive environments, while metal furnace tubes are suitable for environments that require higher vacuum levels.
Temperature control system: Choose CVD tube furnaces with high-precision temperature control systems, such as equipment using PID automatic control, thyristor (thyristor) output power, multi-stage programmable controllers, and other technologies. This helps ensure the reproducibility and accuracy of experimental results.
Gas supply system: CVD tube furnaces need to be equipped with a good gas supply system to achieve the mixing of multiple gases or vapors in a certain proportion and their introduction into the high-temperature furnace. The gas supply system should be equipped with multiple flow meters, such as float flow meters and mass flow meters, to accurately control the intake air volume.
Vacuum system: For many CVD processes, a vacuum environment is essential. Therefore, it is necessary to choose a suitable vacuum system, including the type of vacuum pump, pumping speed, and vacuum degree.
Furnace cavity size: Select the appropriate furnace cavity size and volume based on the size and quantity of the processed samples. Ensure that the furnace chamber is large enough to accommodate the samples to be processed and maintain uniform deposition of the samples.

3. Consider security and usability
Safety performance: Choose a CVD tube furnace with safety devices such as overheat protection, leakage protection, and emergency shutdown to ensure safety during the experimental process.
Convenience of operation: Choose a CVD tube furnace with advanced control system and human-machine interface, such as touch screen control, remote monitoring, etc., to improve the convenience of operation.

4. Understand the brand and after-sales service
Brand selection: Choose well-known brands and CVD tube furnace manufacturers with good reputation to ensure the quality and stability of the equipment.
After sales service: Understand the manufacturer's after-sales service policy, including support for installation and commissioning, technical training, maintenance, and other aspects. This helps to promptly resolve any issues encountered during use.

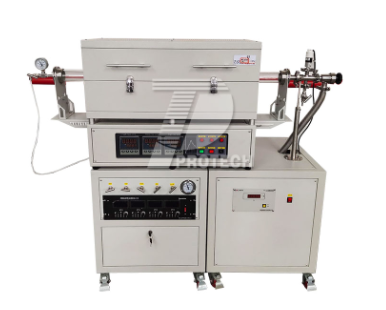

CVD experimental tube furnace with sliding mechanism for rapid temperature rise and fall (click on the image to view product details)

In general, before choosing a CVD tube furnace for university experiments, it is necessary to understand the above aspects. You can communicate the parameter configuration with relevant technical personnel before purchasing, so as to choose a CVD tube furnace that is more suitable for your own experiment!Click to learn more CVD devices! Or click on online customer service to learn more about product information!
