Vertical CVD electric furnaces generally have vertically arranged furnace tubes, and vertical CVD electric furnaces are also a commonly used electric heating equipment in the heat treatment industry. Vertical CVD systems have specific advantages in some applications, let's take a detailed look below!

Characteristics of vertical CVD electric furnace:
Temperature and airflow uniformity: The vertical design optimizes the furnace structure to make the airflow and temperature distribution more uniform. For example, when depositing carbon materials such as graphene, a uniform temperature field can ensure consistency in film thickness and composition, avoiding performance differences caused by local overheating or uneven deposition.
Efficient use of space: Vertical layout greatly saves laboratory or production space, especially suitable for scenes with limited space. Its compact design can accommodate multiple layers of substrate racks, enabling synchronous processing of multiple samples and improving space utilization.
Large batch processing capability: The multi-layer substrate rack design supports simultaneous deposition of multiple samples, greatly improving production efficiency. For example, in semiconductor manufacturing, multiple wafers can be processed at once to shorten the production cycle.
Pollution control: The directional flow of air from top to bottom reduces the deposition of particles on the substrate surface and lowers the risk of pollution. This characteristic is important for applications that require high cleanliness, such as optical thin films and semiconductor devices.
Independent temperature zone control: Some models adopt multi zone independent temperature control technology, which can set differentiated temperatures for different substrates or process steps to meet complex experimental requirements. For example, in the preparation of multilayer films, each layer can be independently deposited in different temperature zones.
Intelligent pressure regulation: By using a precision pressure control system, the pressure in the reaction chamber is maintained stable, reducing the impact of fluctuations on the sedimentation process. This characteristic is important in micro positive pressure or low-pressure CVD processes to ensure the stability of film quality.
Efficient exhaust treatment: It can be equipped with a multi-stage exhaust treatment system to efficiently collect tar and by-products, reducing environmental pollution. Meanwhile, modular design facilitates cleaning and maintenance, extending the lifespan of the equipment.
Rapid cooling system: Optional external circulation rapid cooling device can greatly shorten the cooling time and improve production efficiency. For example, rapid cooling after high-temperature sintering can prevent material phase transition or cracking, and improve yield.

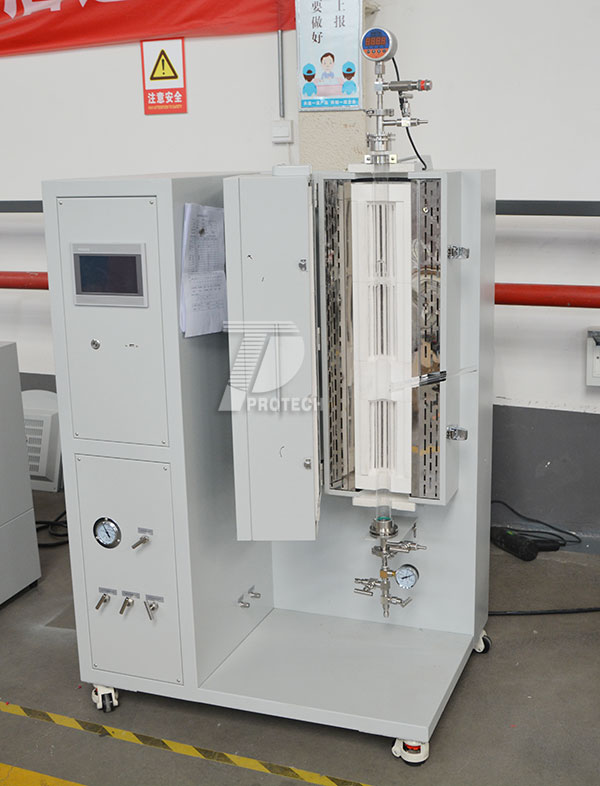

A commonly used multi zone vertical CVD electric furnace (click on the image to view product details)

Application of vertical CVD electric furnace:
Semiconductor manufacturing:
Thin film deposition: Deposition of insulating layers such as silicon dioxide (SiO ₂) and silicon nitride (Si ∝ N ₄), as well as metal layers such as tungsten (W) and titanium (Ti), for electrical insulation, protection, and interconnection.
Epitaxial growth: Growing single crystal silicon or other semiconductor materials on the surface of a wafer to enhance device integration and performance.
High k material deposition: Deposition of high k dielectric materials such as hafnium oxide (HfO ₂) to reduce leakage current and improve MOSFET gate performance.

Optoelectronics:
Optical thin films: Preparation of fiber optic coatings, solar cell materials (such as copper indium gallium selenide thin films), etc., to optimize optical performance.
LED and OLED: By precisely controlling the gas-phase reaction, high-quality and uniform thin film deposition is achieved, improving the efficiency and stability of optoelectronic devices.

Nanotechnology:
Preparation of nanomaterials: synthesis of nanoparticles, nanowires, etc., applied in fields such as nanoelectronics and nanomedicine. For example, using CVD technology to prepare carbon nanotubes for high-strength composite materials or electronic devices.

Surface engineering:
Protective coating: Deposition of anti-corrosion and anti-wear coatings on substrates such as metal, glass, and ceramics to extend their service life. For example, depositing a titanium nitride (TiN) coating on the surface of cutting tools to enhance wear resistance.

Hard coating and tool manufacturing:
Hard material deposition: CVD technology is used to deposit hard coatings such as titanium nitride (TiN) to improve the cutting performance and lifespan of cutting tools and molds.

Sensors and Biomedicine:
Biosensors: Manufacturing thin film materials with biocompatibility for the treatment of cardiovascular diseases or environmental monitoring. For example, depositing bioactive coatings on the surface of medical implants to promote tissue healing.

Ceramics and Powder Metallurgy:
Ceramic sintering: used for powder roasting and sintering of ceramic materials to prepare high-performance ceramic products.
Powder metallurgy: The formation of metal or ceramic materials through gas-phase reactions provides a new preparation method for the field of powder metallurgy.

Optical material synthesis:
Transparent optical materials: materials synthesized for optical devices and coatings, such as zirconia (ZrO ₂), to enhance optical transparency and refractive index.

High temperature experiment and research:
Atmosphere sintering and reduction: As an experimental equipment, it is used for research on high-temperature atmosphere sintering, atmosphere reduction, vacuum annealing, etc., providing support for the fields of materials science and engineering.

Overall, vertical CVD electric furnaces have a wide range of application fields and are highly favored by laboratories in universities and industrial and mining enterprises. Before choosing, you can communicate with relevant technical personnel about the parameters you need, so as to customize a vertical CVD electric furnace that is more suitable for your own experiments and production!Click to learn more CVD devices! Or click on online customer service to learn more about product information!
