Gas injection into tube furnaces plays a significant role in material processing, chemical reactions, and experimental control. Let's take a detailed look at the functions of gas injection tube furnaces below!

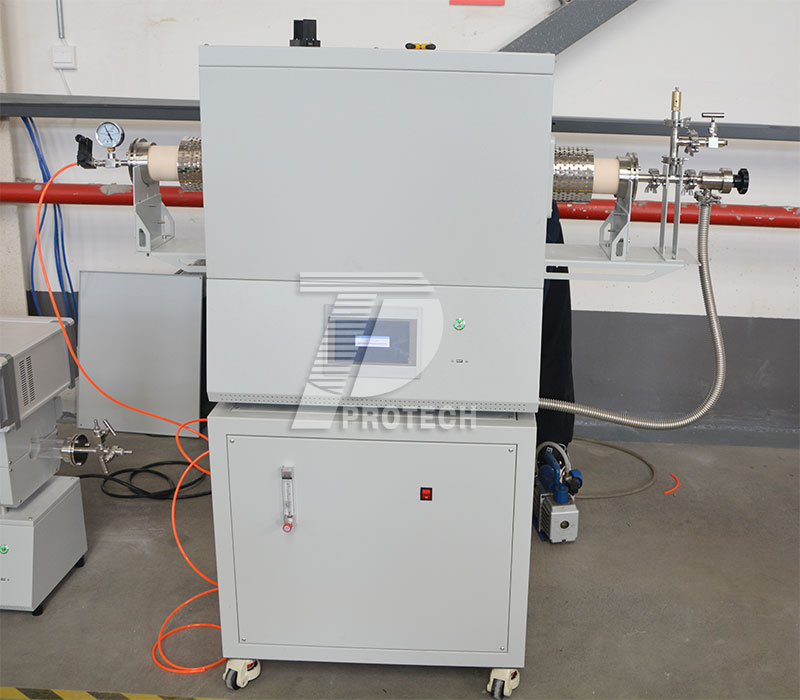

A commonly used 1600 ℃ atmosphere tube furnace (click on the image to view product details)

1. Protective atmosphere: prevent oxidation and pollution
Inert gases (such as argon and nitrogen): isolate oxygen at high temperatures to prevent oxidation of materials such as metals and ceramics. For example, during metal annealing or sintering, argon gas can prevent the formation of an oxide layer on the surface and ensure material properties.
Vacuum alternative solution: When high vacuum cannot be achieved, introducing inert gas can reduce oxygen partial pressure, simulate an approximate vacuum environment, and reduce impurity pollution.

2. Reactive atmosphere: promotes specific chemical reactions
Reductive gases (such as hydrogen and carbon monoxide): reduce metal oxides in metallurgy or chemical engineering. For example, hydrogen can reduce copper oxide to copper while generating water vapor for discharge.
Carbonization/Nitriding Treatment: Gas such as methane and ammonia is introduced to form a carbide or nitride layer on the surface of the material, improving its hardness or corrosion resistance.
Chemical Vapor Deposition (CVD): Gas precursors such as silane and methane decompose at high temperatures to deposit thin films or nanomaterials for semiconductor or coating preparation.

3. Carrier gas function: Transport reactants or products
Fluid transport: In catalytic reactions, a gas (such as nitrogen) serves as a carrier gas to transport reactants (such as gas or vapor) into the reaction zone, ensuring uniform mixing and reaction efficiency.
Product separation: By controlling the gas flow rate, volatile products (such as moisture and gas by-products) are promptly carried out to avoid reverse reactions or blockages.

4. Temperature uniformity and heat conduction optimization
Forced convection: Gas flow can accelerate heat transfer inside the furnace, reduce temperature gradients, and ensure uniform heating of the sample. For example, during rapid heating or cooling processes, gas flow can shorten the thermal response time.
Local cooling: Introduce cooling gas (such as compressed air) into a specific area to prevent local overheating and protect the furnace body or sample.

5. Safety and environmental control
Dilution of toxic gases: When dealing with elements such as sulfur and phosphorus, introducing air or inert gases can dilute toxic gases (such as SO ₂, PH ∝) and reduce the risk of leakage.
Combustion control: In an oxidizing atmosphere (such as oxygen), combustible gases (such as hydrogen) need to be mixed in proportion to avoid explosions, while ensuring complete combustion and reducing pollutant emissions.

6. Experimental condition simulation
Environmental simulation: Introducing specific gas mixtures (such as CO ₂, water vapor) to simulate industrial or natural conditions, studying the corrosion, catalytic, and other behaviors of materials in complex atmospheres.
Pressure control: By combining gas flow and back pressure valve, adjust the pressure inside the furnace (such as micro positive pressure) to prevent external air from infiltrating or maintain specific reaction conditions.

Typical application scenario examples
Metal heat treatment: Annealing under argon protection to eliminate internal stress and improve toughness.
Semiconductor manufacturing: hydrogen reduction of silicon oxide to prepare high-purity silicon wafers.
Catalyst evaluation: Introduce methane and oxygen to test the methane combustion activity of the catalyst.
Nanomaterial synthesis: CVD method is used to introduce acetylene and grow carbon nanotubes on the substrate.

Precautions for operation
Gas purity: Impurities such as oxygen and moisture may affect the reaction results, and high-purity gas or purification equipment should be used.
Flow control: Accurately adjust the gas flow rate through a mass flow meter to avoid insufficient or excessive dilution of reactants.
Sealing: Ensure the furnace body is sealed to prevent gas leakage or external air from entering, especially when dealing with toxic or flammable gases.

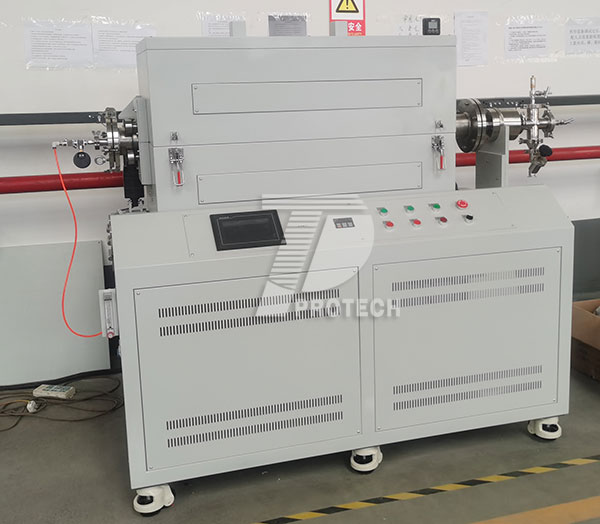

Rotating and tilting atmosphere tube furnace (click on the picture to view product details)

By selecting the appropriate gas type, flow rate, and inlet method, tube furnaces can achieve diverse functions from simple protection to complex chemical synthesis, becoming a very important tool in the field of materials science and engineering.Click to learn more tube furnaces! Or click on online customer service to learn more about product information!
