Customized atmosphere furnaces can reach 1700 ℃, and this type of equipment has a wide range of applications in materials science, metallurgical engineering, ceramic technology, and other fields. Let's take a detailed look below!

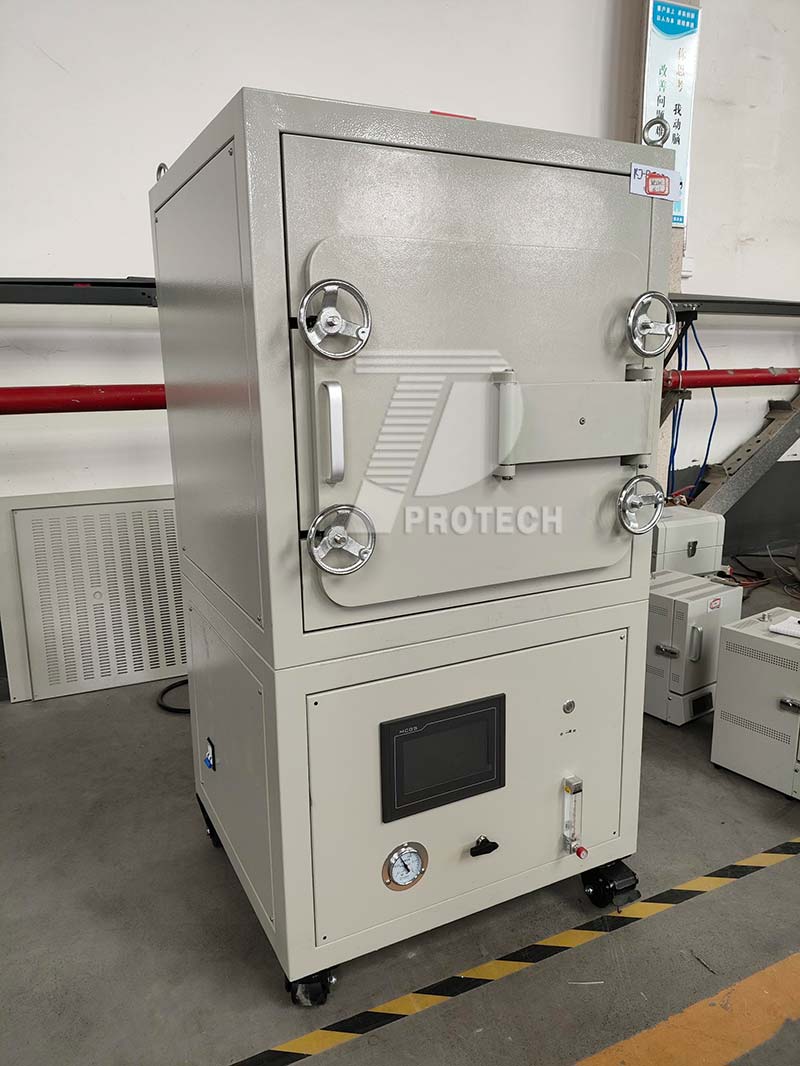

Customized atmosphere furnace with a temperature of up to 1700 ℃ (click on the image to view product details)

Technical feasibility: Standardized production has been achieved at a high temperature of 1700 ℃
Equipment type and maximum temperature
There are already mature 1700 ℃ high-temperature atmosphere furnace products on the current market, such as:
Box type atmosphere furnace: using silicon molybdenum rods as heating elements, the highest temperature can reach 1700 ℃, with a temperature control accuracy of ± 1 ℃, suitable for sintering and heat treatment of special ceramics, magnetic materials, powder metallurgy and other materials.
Vacuum box atmosphere furnace: It can achieve a high temperature of 1700 ℃ in a vacuum environment, with a cold state ultimate vacuum degree of 1Pa, suitable for oxygen free treatment of materials sensitive to oxidation (such as metals and ceramics).
Experimental atmosphere sintering furnace: By precisely controlling the atmosphere composition (such as nitrogen, argon, hydrogen) and pressure, material sintering at 1700 ℃ is achieved to meet the needs of scientific research and industrial production.

Technical indicator support
Temperature control: Adopting PID control or fuzzy control technology, the temperature fluctuation range is small (± 1 ℃ to ± 5 ℃), ensuring the stability of the experiment or production process.
Heating rate: The rate of temperature rise from room temperature to 1700 ℃ can be adjusted (usually from a few degrees Celsius to tens of degrees Celsius per minute), balancing efficiency and equipment lifespan.
Atmosphere purity: High purity atmosphere (such as 99.999% nitrogen) can prevent material oxidation and improve product quality.

Customization advantage: flexible to meet diverse needs
Structural customization
Furnace size: Customize the internal structure of the furnace according to the sample size and shape, providing better heating space and heat conduction effect.
Heating element layout: Optimize the arrangement of heating elements to ensure uniform temperature inside the furnace and avoid local overheating or underheating.
Sealing design: Customize a highly sealed furnace structure to meet specific atmosphere requirements, prevent gas leakage, and ensure experimental safety.

Function Expansion
Atmosphere control system: supports multi atmosphere switching (such as nitrogen, argon, hydrogen) and precise flow control to meet the process requirements of different materials.
Vacuum system: Optional mechanical pump, molecular pump or diffusion pump can be used to achieve different vacuum requirements (such as cold state ultimate vacuum of 1Pa).
Intelligent control: equipped with a touch screen or computer control interface, supporting real-time monitoring and adjustment of parameters such as temperature and atmosphere, reducing operational difficulty.

Material adaptability
Metal materials: protected by an inert atmosphere to prevent high-temperature oxidation, suitable for annealing and sintering of materials such as titanium alloys and nickel based alloys.
Ceramic materials: Achieve uniform densification under oxidizing or inert atmosphere to enhance the mechanical and electrical properties of ceramic products.
Composite materials: By precisely controlling the sintering temperature and atmosphere, optimizing the material interface bonding, high-performance composite materials are prepared.

Application scenario: Dual support for scientific research and industrial production
Scientific research field
New material development: Research the performance of materials under extreme conditions (such as high-temperature superconductivity and nanomaterial synthesis), and explore new process paths.
Failure analysis: By simulating high temperature environments, analyze the causes of material failure and provide data support for product improvement.

Industrial Production
Ceramic products: produce high-density, high-strength structural ceramics and functional ceramics (such as piezoelectric ceramics, magnetic ceramics).
Metal processing: Heat treatment of materials such as titanium alloys and high-temperature alloys to enhance their mechanical properties and corrosion resistance.
Powder metallurgy: achieving densification and sintering of metal powders to prepare high-performance components such as gears and bearings.

Selection suggestion: Core considerations for customized equipment
Clarify requirements
Determine key parameters such as maximum temperature, atmosphere type, and vacuum degree to ensure that equipment performance matches process requirements.
Evaluate sample size and shape, select appropriate furnace size and heating element layout.

Supplier Evaluation
Choose suppliers with customized experience and technical strength to ensure equipment quality and after-sales service.
Refer to similar user cases to understand the performance and stability of the device in practical applications.

Balancing Cost and Efficiency
Customized equipment may involve higher costs and require a comprehensive evaluation of long-term usage benefits.
Optimize device configuration to avoid resource waste caused by excessive customization.

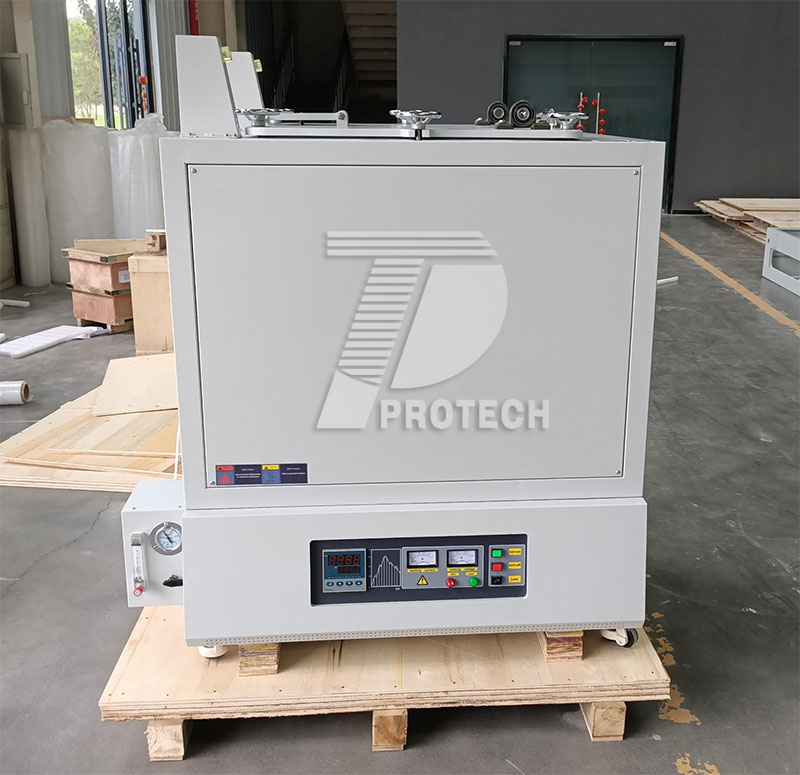

Customized top door 1700 degree box type atmosphere furnace (click on the picture to view product details)

Overall, the technology of customizing a 1700 degree atmosphere furnace is already very mature. Before choosing, it is possible to communicate parameters with relevant technical personnel, such as furnace size, multi-faceted heating, number of gas paths, etc., in order to customize a more suitable 1700 degree atmosphere furnace for one's own experiment or production!Click to learn more atmosphere furnaces! Or click on online customer service to learn more about product information!
