PECVD (Plasma Enhanced Chemical Vapor Deposition) electric furnace coating technology achieves efficient thin film deposition at low temperatures through plasma assisted chemical reactions. Let's take a detailed look at the core advantages of PECVD electric furnace coating!

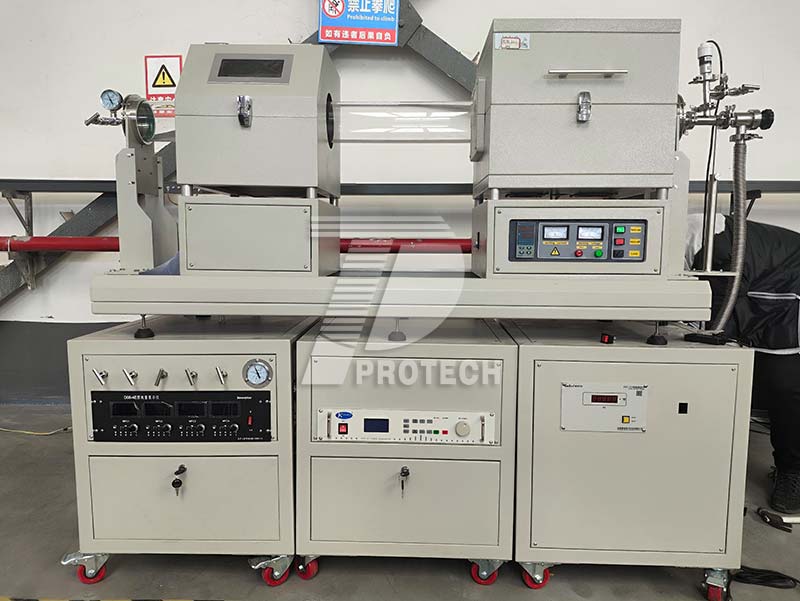

Commonly used slide type PECVD coating electric furnace (click on the image to view product details)

1. Low temperature deposition: Breaking through substrate limitations and reducing energy consumption
Temperature range: PECVD can operate within the range of room temperature to 450 ℃ (some processes even lower than 250 ℃), much lower than traditional CVD technology (usually requiring above 600 ℃).
Application case: When depositing silicon nitride film on plastic substrate, the process temperature can be controlled below 250 ℃ to avoid substrate deformation or performance degradation caused by high temperature.
Energy advantages: Low temperature technology reduces energy consumption and production costs, especially suitable for heat sensitive materials such as flexible substrates and organic materials.

2. High sedimentation rate: improving production efficiency
Technical principle: High energy electrons in plasma accelerate the ionization of gas molecules, greatly increasing the reaction rate.
Data comparison: The deposition rate of PECVD can reach several times to tens of times that of traditional CVD.
Production efficiency: Shorten production cycle, improve equipment utilization, especially suitable for large-scale industrial production.

3. Controllable film performance: meets diverse needs
Parameter adjustment: By adjusting parameters such as plasma power, gas flow rate, and temperature, the crystallinity, refractive index, thickness, stress, and other properties of the film can be precisely controlled.
Optical applications: In solar cells, by adjusting the refractive index and thickness of silicon nitride films, a dual effect of anti reflection and passivation can be achieved, improving the conversion efficiency of the cell.
Semiconductor applications: When depositing silicon dioxide thin films, the density and uniformity of the film can be adjusted by controlling the RF power, meeting the high requirements of integrated circuits for insulation layers.

4. Uniformity and density: ensuring product quality
Technical support:
Plasma diffusion: The active substances in the plasma have high kinetic energy and can form uniform deposition throughout the substrate.
Special design: Adopting multi-point RF technology, special gas path distribution, and heating system to ensure smaller film thickness deviation.
Defect control: The generated thin film has fewer pinholes, good density, and good protective performance. For example, in semiconductor devices, PECVD deposited silicon nitride thin films can effectively block water vapor and ion penetration.

5. Widely applicable materials: expanding application boundaries
Material compatibility: Supports the deposition of various materials such as metals (such as aluminum and copper), ceramics (such as silicon nitride and silicon dioxide), and composite materials (such as diamond-like carbon).
Emerging fields:
Biomedical: Deposition of biocompatible coatings (such as TiO ₂, SiO ₂) for surface protection of medical devices.
Flexible electronics: Deposition of transparent conductive films (such as ITO) on flexible substrates such as polyimide for use in touch screens and displays.
Energy storage: Deposition of solid electrolyte films to enhance the safety and energy density of lithium-ion batteries.

6. Multifunctionality: Integrating multiple processes
Scalability:
Vacuum coating: Combining sputtering or evaporation techniques to prepare metal dielectric composite films.
Nanomaterial preparation: Synthesize nanoparticles or nanostructured thin films by adjusting plasma parameters.
Plasma cleaning etching: Surface cleaning of the substrate before coating to improve film adhesion.
Annealing treatment: Integrating rapid annealing function, optimizing film crystallinity, and reducing thermal budget.

7. Process stability and reliability: ensuring long-term operation
Equipment design:
Temperature control system: adopting PID control technology to achieve temperature control accuracy of ± 1 ℃, ensuring process repeatability.
Vacuum system: equipped with high vacuum pumps (such as molecular pumps) to maintain stable reaction chamber pressure and reduce impurity contamination.
Safety mechanism: Multiple gas leak detection, emergency stop protection and other functions ensure safe operation.

Industry application and value verification
In the field of photovoltaics, PECVD is the mainstream technology for preparing silicon nitride anti reflection passivation layers for crystalline silicon solar cells, and over 80% of global battery production lines use this technology.
Semiconductor industry: In integrated circuit manufacturing, PECVD deposited silicon dioxide and silicon nitride films are used to isolate conductive layers, protect device surfaces, and improve yield.
In the field of optics, PECVD deposited anti reflective films can improve the transmittance of optical devices such as lenses and filters.

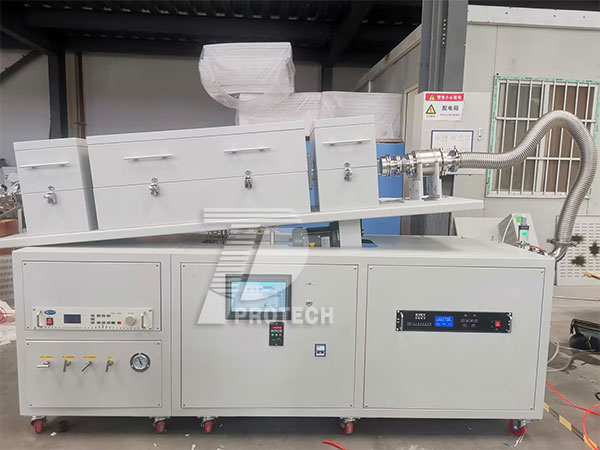

PECVD coating electric furnace that can rotate and tilt (click on the image to view product details)

Summary: The core value of PECVD electric furnace coating technology
PECVD has become a commonly used technology in the fields of semiconductors, photovoltaics, optics, biomedicine, etc., through a low-temperature, efficient, and controllable deposition process, combined with extensive material compatibility and multifunctionality. Its advantages are not only reflected in technical parameters, but also provide better solutions for high-end manufacturing through efficiency improvement, cost reduction, and performance optimization in actual production. With the continuous emergence of new materials and applications, PECVD technology will continue to contribute to the innovation and development of related industries.Click to learn more PECVD devices! Or click on online customer service to learn more about product information!
