There are significant differences in structure, function, application scenarios, and performance requirements between muffle furnaces and atmosphere muffle furnaces. Let's take a detailed look below!

Commonly used high-temperature muffle furnace (click on the image to view product details)

1. Structural differences
Muffle furnace
Infrastructure: composed of furnace, shell, furnace door, and electrical control system.
Furnace: made of refractory materials, accommodating heating materials, with efficient layout of electric heating wires or plates inside to ensure uniform heat transfer.
Shell: Protection and support function, using insulation materials such as ceramic fibers to reduce surface temperature and save electricity.
Furnace door: Side opening design, convenient for material retrieval and storage.
Electronic control system: controls heating temperature and time, equipped with a good temperature controller to achieve precise temperature control.
Features: Simple structure, no gas channel or vacuum system, low sealing requirements.

Atmosphere muffle furnace
Expansion structure: Add gas channels, vacuum systems, sealing devices, and gas monitoring systems on the basis of the muffle furnace.
Gas channel: Introduce nitrogen, hydrogen, argon, etc. to achieve specific atmosphere control.
Vacuum system: supports vacuum state processing or injection of protective gas for sintering, quenching and other processes.
Sealing device: The furnace shell, masonry, furnace door, etc. are designed with sealing to prevent air leakage and ensure stable atmosphere.
Gas monitoring system: Real time monitoring of the composition and concentration of the atmosphere inside the furnace to ensure process requirements.
Characteristics: The structure is complex and requires components such as vacuum pumps and atmosphere controllers, with high sealing requirements.

2. Functional differences
Muffle furnace
Core function: Provide high temperature environment for general heat treatment processes.
Heat treatment: annealing, quenching, tempering, etc.
Material processing: burning, drying, ashing experiment, aging treatment, etc.
Limitations: Unable to adjust the composition of the furnace atmosphere, relying only on air or natural atmosphere.

Atmosphere muffle furnace
Core function: Accurately control the atmosphere environment inside the furnace based on high temperature.
Atmosphere control: By introducing different gases, specific chemical reactions can be achieved or material oxidation can be prevented.
Special processes: gas carburizing, carbonitriding, bright quenching, annealing, normalizing, etc.
Advantages: It can suppress impurity generation, improve material purity and performance, and is suitable for processes with strict atmosphere requirements.

3. Differences in application scenarios
Muffle furnace
Laboratory applications: preparation of burn residue, ash, heavy metal test samples, aging treatment, ashing experiments, etc.
Industrial applications: material synthesis, modification, heat treatment, metallurgy, glass, ceramics, magnetic materials, refractory materials and other fields.
Typical scenarios: Box type resistance furnaces and box type high-temperature furnaces are widely used for conventional heating needs.

Atmosphere muffle furnace
Laboratory applications: Research and development of special materials in higher education institutions and research institutes, such as high-performance ceramics, metal sintering, etc.
Industrial applications: ceramics, metallurgy, electronics, glass, chemical industry, machinery, refractory materials, new material development and other fields.
Typical scenarios: processes that require precise atmosphere control, such as lithium battery industry, powder metallurgy, and electronic component production.

4. Differences in performance requirements
Muffle furnace
Temperature control: High precision, but low sealing requirements.
Heating speed: Faster, efficient layout inside the furnace and special material support for rapid heating.
Thermal insulation performance: Good, ceramic fiber inner groove and other materials reduce heat loss.

Atmosphere muffle furnace
Temperature control: Higher stability and uniformity requirements are needed to ensure coordinated control of atmosphere and temperature.
Sealing: It must be strictly sealed to prevent gas leakage or external air from entering, which may affect the process effect.
Safety: Equipped with over temperature alarm, power-off protection, furnace door interlock and other safety measures to ensure safe operation.

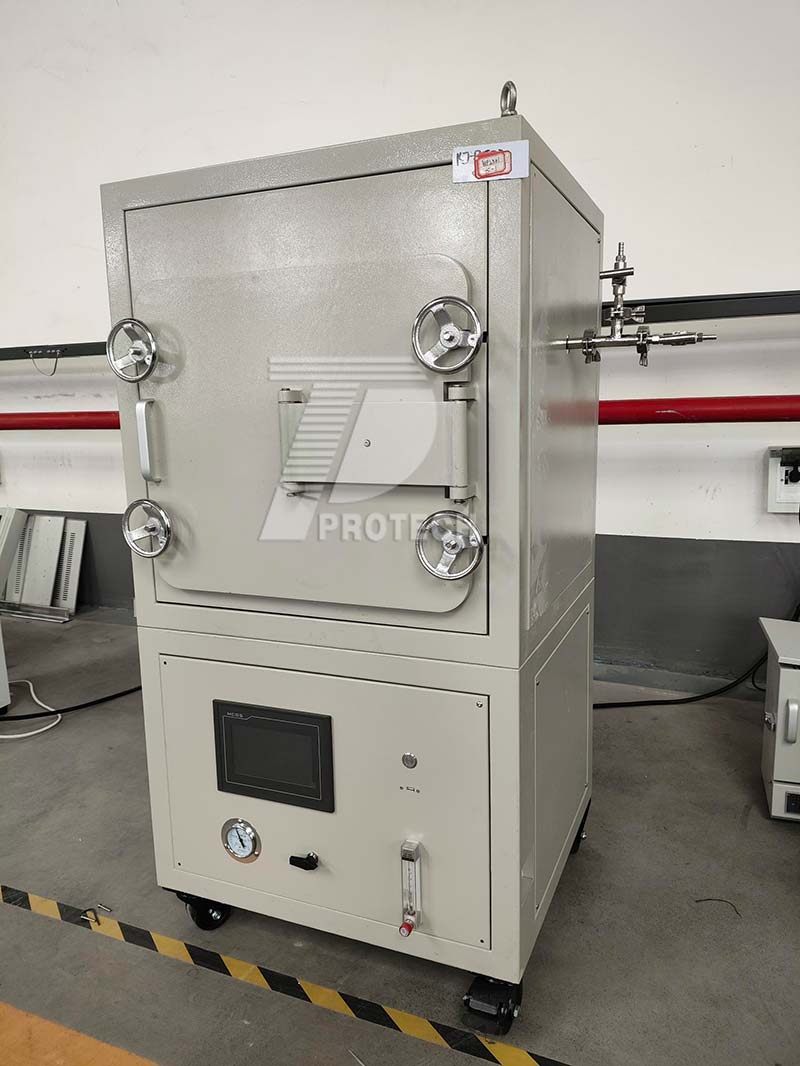

Commonly used high-temperature atmosphere muffle furnace (click on the image to view product details)

5. Summary and selection suggestions
Choosing a muffle furnace: If the process only requires a high temperature environment, no atmosphere control, and a limited budget, a muffle furnace is an efficient and economical choice.
Choose an atmosphere muffle furnace: If the process has strict requirements for the atmosphere (such as preventing oxidation, promoting specific reactions), or requires special heat treatment effects (such as bright quenching, carburizing), an atmosphere muffle furnace is a necessary equipment.
Example scenario:
When preparing high-performance ceramic materials, the atmosphere muffle furnace can accurately control the nitrogen atmosphere, suppress impurity generation, and improve product quality.
When conducting conventional heat treatment of metal materials, the muffle furnace has better efficiency heating and cost advantages.Click to learn more high temperature atmosphere muffle furnaces! Or click on online customer service to learn more about product information!
