The high-temperature gas tube furnace used in laboratories is an experimental equipment commonly used in the fields of materials science, chemistry, metallurgy, etc. It can process samples at high temperatures and in specific atmospheric environments. Let's take a detailed look below!

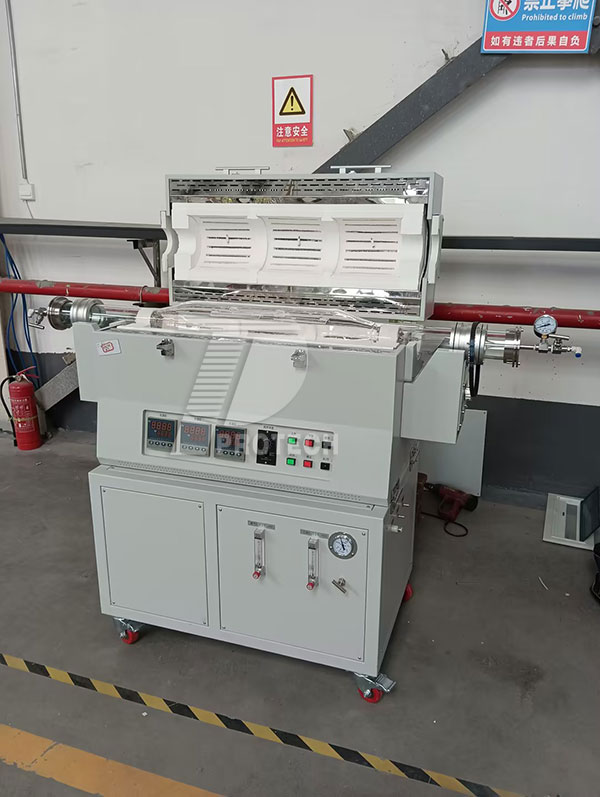

Commonly used rotating inclined gas tube furnace (click on the image to view product details)
Structure and Principle
Furnace: It is usually made of polycrystalline alumina fiber material or lightweight alumina ceramic fiber, which has the characteristics of good insulation performance and high energy-saving efficiency.
Heating elements: Common ones include silicon carbon rods, silicon molybdenum rods, or resistance wires, which convert electrical energy into thermal energy to increase the temperature inside the furnace.
Furnace tube: Materials include high-temperature quartz tube, corundum tube, alloy tube, etc., which can be selected according to different temperature requirements and experimental atmospheres. The furnace tube has flange seals at both ends and can be filled with various protective gases.
Temperature control system: generally equipped with artificial intelligence PID regulation technology, with program function, can set the temperature rise curve, and the temperature control accuracy can reach ± 1 ℃.
Atmosphere control: One or more air inlets can be set at the inlet end, equipped with needle valves and vacuum gauges, which can control gas flow and support the introduction of various gases such as nitrogen, argon, oxygen, etc. Some models can also be equipped with vacuum pumps to achieve a vacuum environment.

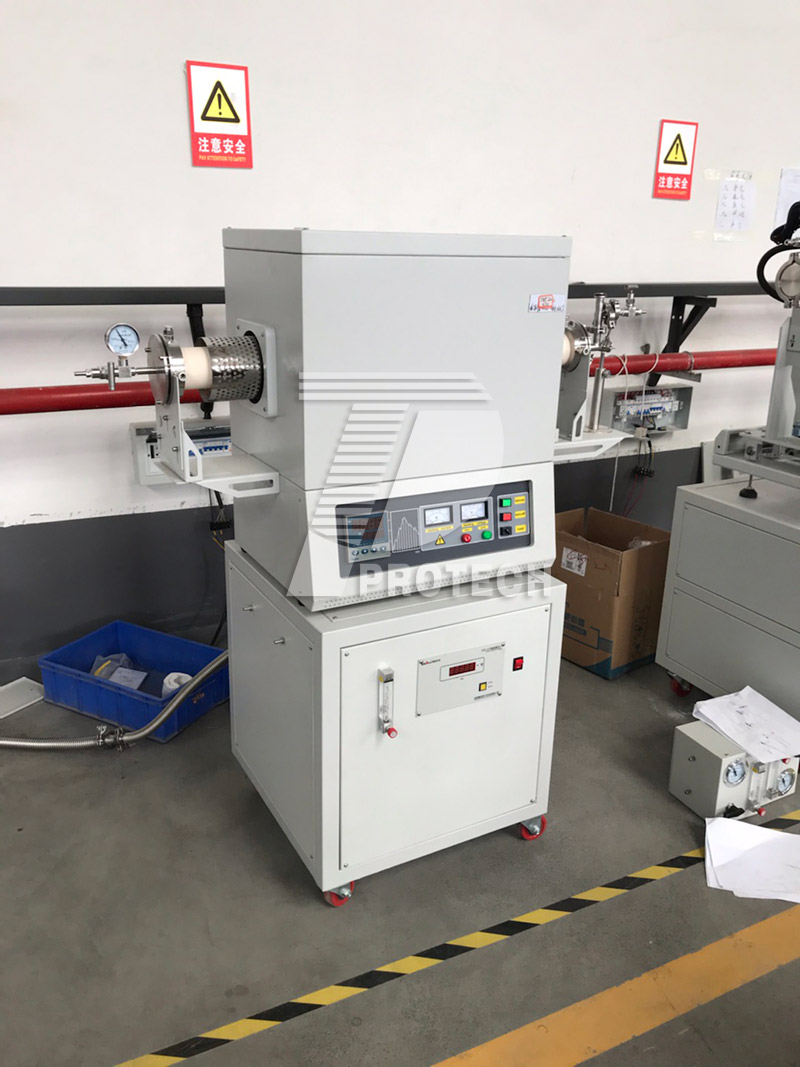

Gas tube furnace with a temperature of up to 1700 ℃ (click on the image to view product details)
Product Features
Wide temperature range: There are various temperature categories such as 1200 ℃, 1400 ℃, 1600 ℃, 1700 ℃, etc., which can meet the high temperature requirements of different experiments.
Good uniformity of temperature field: The heating elements are evenly arranged on both sides of the furnace, which can achieve a temperature field uniformity of ± 5 ℃ inside the furnace.
Easy to operate: It has functions such as PID self-tuning, automatic heating, automatic insulation, and automatic cooling, without the need for duty. It can also communicate with a computer and operate the electric furnace through the computer.
Safe and reliable: Adopting a double-layer shell, air circulation insulation, low furnace temperature, electronic components with leakage protection function, will send an alarm signal for overheating and automatically complete the protection action.Click to learn more Customized experimental tube furnaces! Or click on online customer service to learn more about product information!
