The rotating tube furnace with three temperature zones performs well in ceramic sintering and has great advantages, which can effectively improve sintering quality and product performance. The following is a detailed analysis!

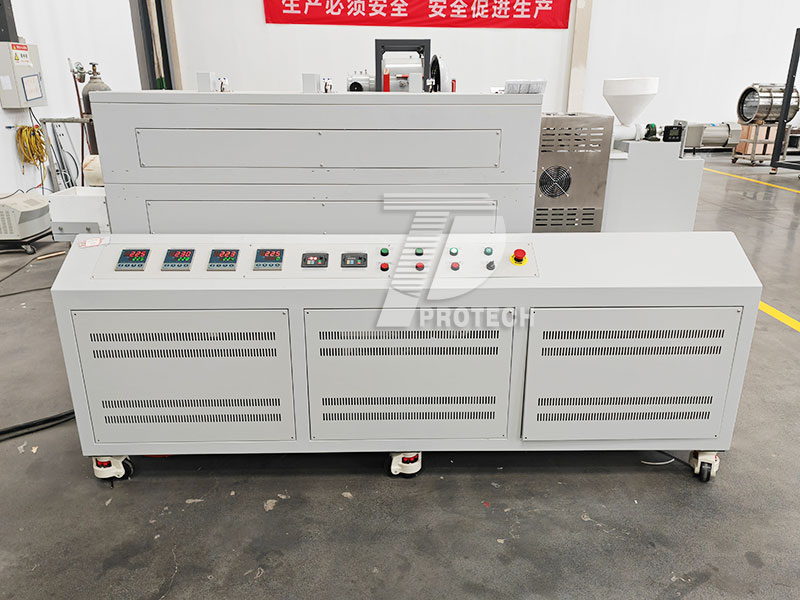

Customized hopper material for three temperature zone rotary tube furnace (click on the picture to view product details)

Accurate temperature control to meet the needs of different sintering stages
Independent temperature control system: Each temperature zone of the three zone rotary tube furnace is equipped with independent heating elements and temperature sensors, which can achieve independent temperature control. This design can set different temperature curves according to the different stages of ceramic sintering (such as preheating, sintering, cooling), ensuring that each stage can be carried out at a better temperature, thereby improving the sintering quality.
High precision temperature control: using PID automatic control technology and thyristor regulation, the temperature control accuracy can reach ± 1 ℃, which can better control the temperature inside the furnace and achieve a stable heating process. This high-precision temperature control helps to reduce temperature fluctuations during the sintering process and avoid problems such as ceramic cracking or deformation caused by uneven temperature.

Rotating design promotes uniform heating of materials
Rotation function: The furnace tube can rotate in both forward and reverse directions, and the speed can be adjusted. This design allows the materials to constantly flip and mix inside the furnace, avoiding the problems of material accumulation and local overheating, and ensuring uniform heating of the materials.
Improving product quality consistency: Uniform heating helps reduce stress concentration during sintering, increase the density and strength of ceramic products, and thus enhance the consistency and stability of product quality.

Adapt to various material and process requirements
Processing various forms of materials: The three temperature zone rotary tube furnace can process various forms of materials, such as powders, particles, block solids, etc., suitable for heating, sintering, synthesis and other processes of various materials.
Widely applicable fields: In the field of ceramic sintering, this furnace type can be used to prepare various ceramic materials such as alumina, silicon nitride, and silicon carbide. At the same time, it can also be used in materials fields such as semiconductors and catalysts to meet the sintering needs of different industries.

Energy saving and environmental protection, improving production efficiency
Energy saving design: The furnace is made of alumina polycrystalline fiber material, which has good insulation performance and can reduce energy loss and energy consumption. At the same time, the double-layer furnace shell is equipped with an air cooling system, which helps to quickly raise and lower the temperature and improve production efficiency.
Environmental performance: This furnace type can be equipped with a tail gas treatment device, effectively treating harmful gases generated during the sintering process, reducing environmental pollution, and meeting the requirements of modern industry for environmental protection.

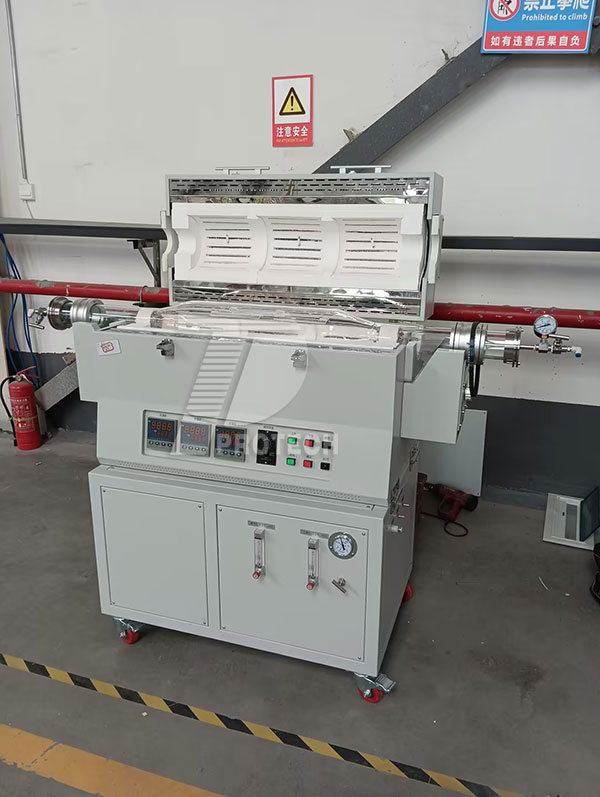

Variable diameter tube can be used in a three temperature zone rotary tube furnace for ceramic sintering (click on the picture to view product details)

Actual case verification effect
Successful application cases: Multiple successful application cases have shown that the three temperature zone rotary tube furnace has achieved good results in ceramic sintering. For example, in the sintering of alumina ceramics, this furnace type can produce ceramic products with high density and good strength; In the sintering of silicon nitride ceramics, it can improve the density and wear resistance of the ceramics.Click to learn more rotary tube furnaces! Or click on online customer service to learn more about product information!
