In the production and experimental scenarios of heat treatment such as new material sintering, metal annealing, and powder metallurgy, high-temperature atmosphere furnaces are the core process equipment. Many customers only focus on the highest temperature when purchasing, and after the equipment arrives, problems such as unstable atmosphere, poor insulation, air leakage, and inaccurate temperature control directly affect product yield. When purchasing a high-temperature atmosphere furnace, the following core performance parameters must be carefully checked.

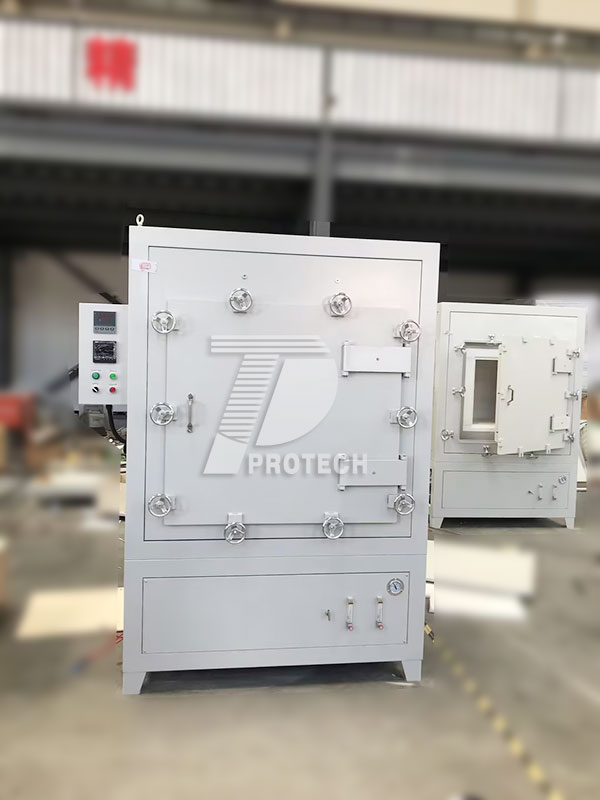

A commonly used high-temperature atmosphere furnace (click on the image to view product details)

1. Maximum operating temperature and long-term use temperature
Many purchases tend to confuse "extreme temperature" and "long-term use temperature". The highest temperature marked on the equipment belongs to the short-term peak temperature and cannot operate continuously at this temperature for a long time.
Selection principle: The normal production process temperature is recommended to be about 100 ℃ lower than the maximum temperature of the equipment. For example, if the process requires sintering at 1400 ℃, the highest temperature model of 1500 ℃ should be preferred to extend the service life of the furnace and heating elements, and reduce maintenance costs in the later stage. At the same time, confirm the heating rate. Different materials have requirements for the heating and cooling speed, and check the controllable heating range of the equipment.

2. Atmosphere system and vacuum parameters
The core advantage of high-temperature atmosphere furnace is the controllable atmosphere environment, which directly determines the success or failure of the process.
(1). Vacuum degree: Confirm the maximum vacuum and working vacuum of the equipment. If the process requires a high vacuum environment, we cannot only look at low vacuum indicators;
(2). Ventilation capacity: The types of gases that can be introduced, such as argon, nitrogen, hydrogen, ammonia, etc., and whether the flow rates of multiple gas paths are independently adjustable;
(3). Sealing performance: furnace flange and furnace door sealing structure. Poor sealing can lead to air infiltration, material oxidation, and unstable atmosphere.
Reminder: When dealing with flammable and explosive gases, it is necessary to confirm that the equipment comes with safety protection and exhaust gas treatment devices.

3. Effective size of furnace and uniformity of temperature zone
Don't just look at the external size of the furnace body, focus on confirming the effective constant temperature zone size, that is, the material placement area.
Temperature field uniformity is a key parameter, commonly used in the industry as ± 5 ℃ and ± 10 ℃ indicators. The length of the constant temperature zone and the magnitude of the temperature difference directly affect the sintering consistency of the entire batch of materials. If it is mass production, it is necessary to request a temperature field test report from the manufacturer to avoid uneven heating of materials in various parts during actual production, resulting in a low yield of finished products. The furnace material should also match the temperature and atmosphere environment. Materials such as alumina fiber and corundum crucible have different tolerance under different atmospheres.

4. Accuracy of temperature control system
Temperature control determines process repeatability, and high-quality high-temperature atmosphere furnaces use intelligent program temperature control instruments.
Focus on: temperature control accuracy, whether it supports multi-stage program heating, insulation, and cooling curve storage. A good system can pre store multiple sets of process curves and call them with one click, reducing the repetitive work of each debugging. The selection of thermocouples should also match the highest temperature. S-type and B-type thermocouples are suitable for high-temperature scenarios, and incorrect selection can result in inaccurate temperature measurement and drift.

5. Structure, safety, and continuous operation capability
(1). Cooling system: water-cooled/air-cooled configuration, rapid cooling process requires confirmation of cooling rate in advance;
(2). Equipment operation stability: distinguish between laboratory intermittent and industrial long-term continuous production models;
(3). Security protection: over temperature power-off, pressure protection, gas leakage alarm, overload protection, etc. Industrial production runs for a long time, and protective functions are essential to avoid safety accidents.

6. Non standard customization capability and after-sales service
If the standard furnace body size, gas path, and temperature zone cannot match the process, non-standard customization by the manufacturer is required. Before purchasing, confirm whether the manufacturer can adjust the furnace, add multiple gas paths, and modify the inlet and outlet structure as needed.
At the same time, understand the warranty period and supply cycle of vulnerable parts (heating elements, seals). High temperature furnaces are consumable equipment, and maintenance costs in the later stage also need to be included in the procurement budget.

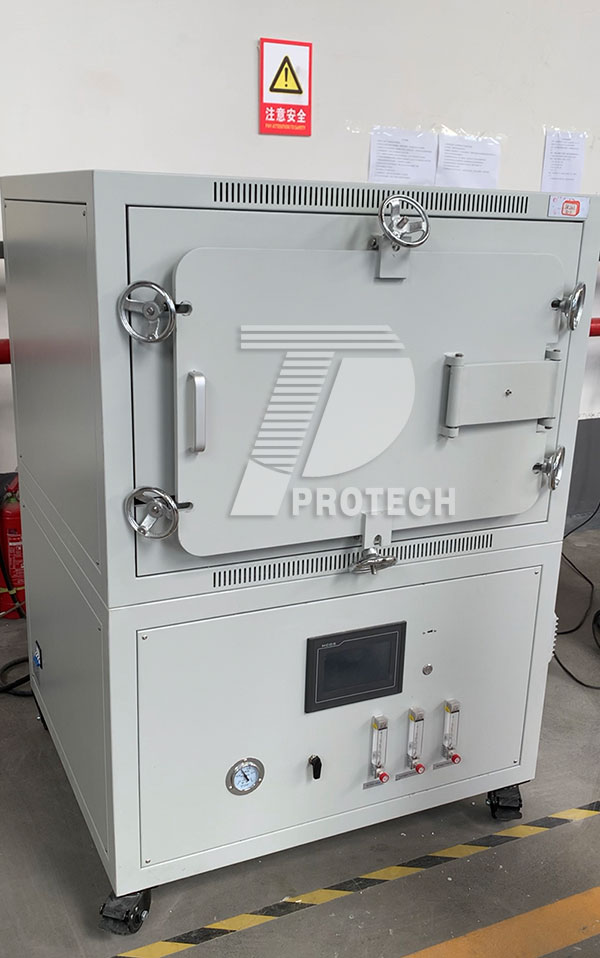

Customized high-temperature atmosphere furnace (click on the image to view product details)

Summary
When purchasing high-temperature atmosphere furnaces, it is not enough to simply compare prices. It is necessary to combine our own heat treatment process and check the operating temperature, vacuum and atmosphere, temperature field uniformity, temperature control accuracy, and safety configuration in sequence. Priority should be given to selecting manufacturers that match parameters, provide temperature field detection, and support customization in order to ensure stable sintering and annealing processes and reduce production risks. If there is a process plan that needs to be evaluated, you can consult the equipment manufacturer for the plan and quotation.Click to learn more customized atmosphere furnaces! Or click on online customer service to learn more about product information!
