Laboratory multi zone tube furnace, also commonly known as gradient heating tube furnace, is a precision heat treatment equipment commonly used in universities, research institutes, and new material enterprise laboratories. The biggest difference from ordinary single temperature zone tube furnaces is that the equipment is divided into multiple independent heating temperature zones, each with an independent PID temperature control system, which can set the temperature separately, edit the heating curve, and build a stable and controllable temperature gradient inside the furnace tube, meeting the requirements of complex material experimental processes such as CVD synthesis, powder pyrolysis, gradient sintering, and step-by-step annealing. Domestic professional gradient heating tube furnace manufacturers can customize production according to experimental needs.

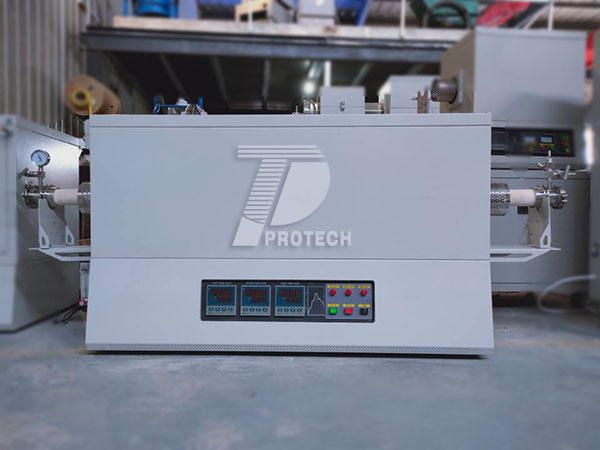

A three temperature zone tubular furnace with a maximum temperature of 1700 (click on the image to view product details)

1. Working principle of multi temperature zone tube furnace
The multi zone tube furnace adopts a segmented independent heating structure, with 2, 3 or more heating temperature zones set along the axis of the furnace tube. Each temperature zone is equipped with independent heating elements, thermocouples and temperature control instruments. By setting target temperatures for each temperature zone separately, a continuous temperature gradient is formed inside the furnace tube; It is possible to set a linear gradient field from high temperature to low temperature, as well as a segmented constant temperature zone, to achieve continuous preheating, high-temperature reaction, and slow cooling of the sample in the same tube, avoiding contamination and thermal shock caused by sample transfer, which is very suitable for exploring new material processes.
When multiple temperature zones are set to the same temperature, they can be joined together to form a longer constant temperature range, meeting the requirements of uniform heat treatment for long and batch samples, and balancing the needs of gradient experiments and conventional sintering annealing. The equipment is equipped with sealing flanges, which can achieve atmospheric pressure, inert atmosphere, vacuum environment, and adapt to various experimental conditions such as oxidation, reduction, and vacuum heat treatment.

2. Core advantages of gradient heating tube furnace
(1). Independent multi zone temperature control, adjustable gradient
Dual temperature zone, triple temperature zone, and multi temperature zone are optional, and each temperature zone does not interfere with each other. The temperature control accuracy is high, the temperature field fluctuation is small, and the temperature gradient can be freely adjusted. A single experiment can study the phase transition and diffusion characteristics of materials at different temperatures, greatly shortening the experimental period.
(2). Support complex programmable processes
Intelligent PID program temperature control, supports multi-stage heating, insulation, and cooling curve storage, process parameters can be repeatedly called, experimental data is stable and reproducible, suitable for scientific research papers and new material development experiments.
(3). Integration of vacuum atmosphere
Standard flange sealing structure, can be paired with gas mass flow meters, vacuum units, and can be filled with protective atmospheres such as argon, nitrogen, hydrogen, etc. It can also be vacuumed to prevent high-temperature oxidation of samples.
(4). Safe and durable, easy to operate
Double layer furnace shell air-cooled design, with low temperature of the furnace shell; Built in multiple protections for overheating, breaking, and overcurrent. The furnace adopts high-purity alumina lightweight insulation fiber, which has low heat storage, stable temperature rise, and energy saving. The furnace tube can be made of quartz tube or corundum alumina tube, suitable for different temperature and corrosive atmosphere conditions.
(5). Support non-standard customization
Gradient heating tube furnace manufacturers can customize furnace tube diameter, heating zone length, number of temperature zones, maximum operating temperature, and support gas path, mixing, steam supply and other expansion modules to match special experimental processes.

3. Main application areas of multi zone tube furnace
University research laboratory: gradient sintering of inorganic materials, ceramics, and crystalline materials, research on material thermal properties
Nanomaterial preparation: CVD chemical vapor deposition, gas-phase transport growth of nanowires, thin film preparation
New energy materials: Thermal decomposition, carbonization, and crystal structure control of lithium and sodium positive and negative electrode powders
Chemical catalysis: catalyst precursor calcination and stepwise thermal decomposition experiment under atmosphere
Powder metallurgy: segmented heat treatment of powder samples and gradient annealing experiments

4. Key points for selecting multi temperature zone tubular furnaces in laboratories
(1). Number of temperature zones: Double temperature zones are selected for simple gradient experiments; CVD、 Long process step-by-step heat treatment prioritizes three temperature zones; Special processes can be customized for four temperature zones and five temperature zones. The more temperature zones there are, the higher the equipment cost. Choose according to your needs.
(2). Maximum operating temperature: Conventional options include 1200 ℃, 1400 ℃, and 1600 ℃; Quartz furnace tubes are used for medium and low temperature experiments, and high-purity corundum furnace tubes are selected for high temperature conditions above 1400 ℃.
(3). Atmosphere and vacuum requirements: Only protect the atmosphere and select a basic gas path; Need high vacuum experiment, equipped with vacuum unit, pay attention to flange sealing level.
(4). Furnace tube specifications: Select the inner diameter and total length of the furnace tube based on the sample size, and confirm the effective heating length of each temperature zone.
(5). Temperature control configuration: It is necessary to confirm that each temperature zone has independent instruments and thermocouples, and not to share temperature control modules, otherwise it will be impossible to establish a stable temperature gradient.

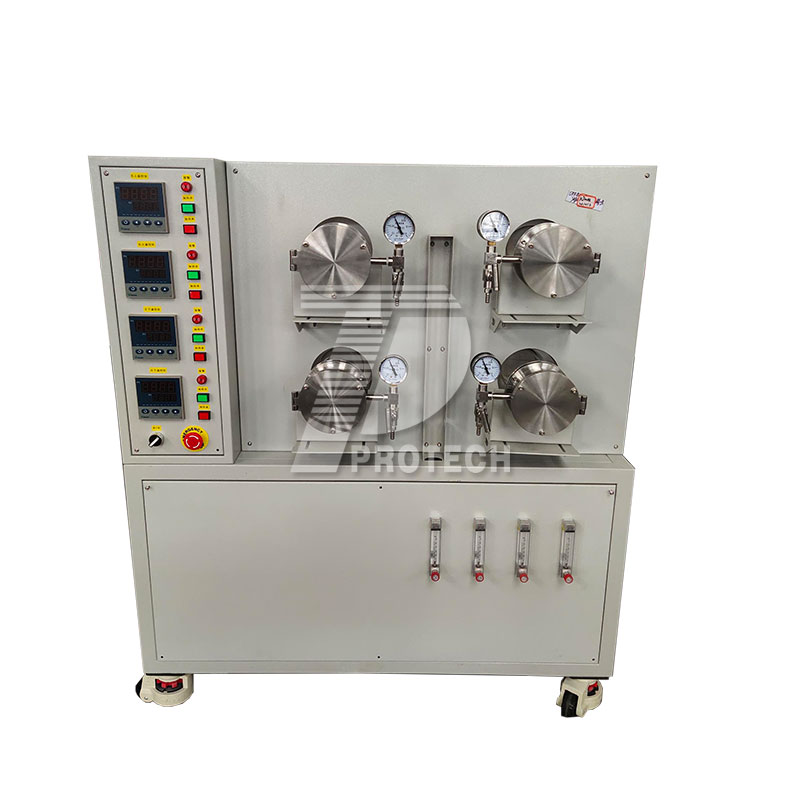

Customized four tube multi temperature zone tube furnace (click on the image to view product details)

5. Manufacturer customization and after-sales service
Professional gradient heating tube furnace manufacturer, can provide one-stop service for laboratory multi temperature zone tube furnace design, production, and on-site debugging. Complete temperature field testing before leaving the factory, provide operation manual, equipment support warranty, and later provide parts replacement and process technology consultation.Click to learn more multi zone tube furnaces! Or click on online customer service to learn more about product information!

> FAQ
>Q: What is the difference between a multi zone tube furnace and a single zone tube furnace?
>A: There is only one set of temperature control for the entire furnace in a single temperature zone, and the overall temperature inside the furnace is consistent; Each heating section in the multi temperature zone is independently controlled to form a temperature gradient, suitable for stepwise reactions CVD、 Gradient screening experiment.
>Q: Can a multi zone tube furnace be filled with hydrogen gas?
>A: Yes, the manufacturer can upgrade the explosion-proof gas circuit and seal, and select hydrogen specific safety components. The process atmosphere needs to be informed in advance.
>Q: Can the temperature gradient be freely adjusted?
>A: Yes, you can directly set the temperature for each temperature zone on the temperature control instrument, and adjust the gradient size according to experimental requirements.
