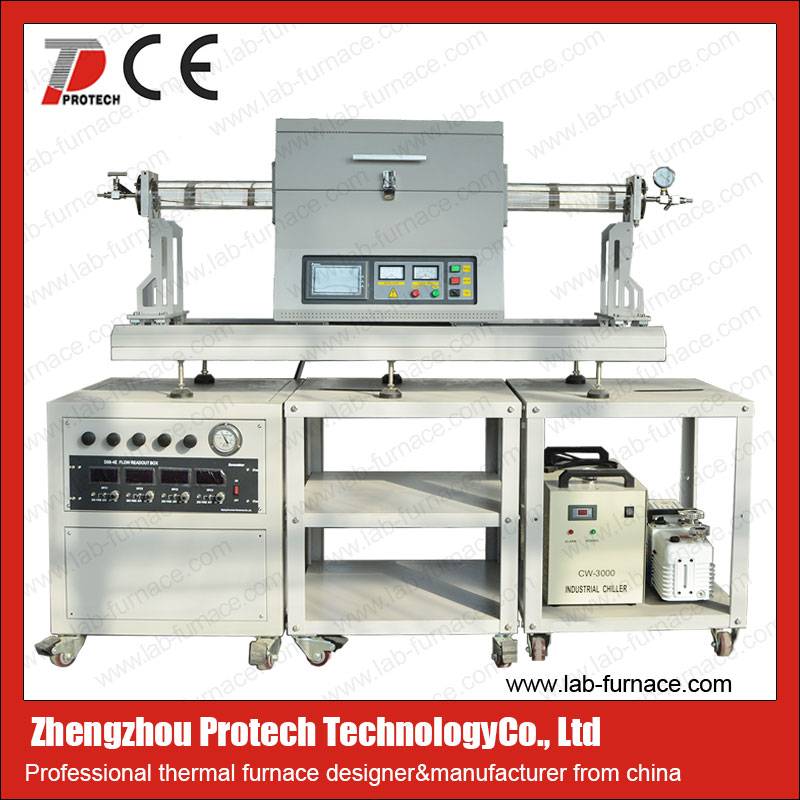

1400C CVD system furnace

1400C CVD tube furnace

ModelPT-1400CVD

Description1400C CVD tube furnace is widely used for various CVD experimental reaction temperature at 1300 , it can also be used for vacuum sintering,vacuum protective atmosphere sintering nanomaterials preparation,battery materials preparation and other research field.

Inquire Now

Outstanding features of 1400C CVD tube furnace :
1.Enclosed tube furnace
2.To be input inert gas, hydrocarbon gas,hydrogen.
3.Max. Temperature 1400C

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of 1400C CVD tube furnace :
Model PT-1400CVD
Control system Intelligent temperature control system
Display mode Digital tube display(LED)
Limiting  temperature 1400
Working temperature ≤1350
Heating rate ≤20(suggestion:10/min)
Heating element SiC
Heating zone Single
Heating zone length 400mm
Furnace tube material High purity alundum tube
furnace tube diameter 80mm
The furnace tube length 1000mm
Gas tightness Vacuum flange and corundum furnace tube up to4.03×10-3Pa
Control mode PID Temperature control
Temperature accuracy ±1
Thermal Couple S Type
Working voltage AC 110-480V 50Hz60Hz
Rated power 3KW
The flow meter Float flowmeter
Pneumatic pressure -0.10.15 MPa
Warranty 12 month (exclusive wearing part)
1400C CVD tube furnace can be customized according to customers’requirements.

 Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
