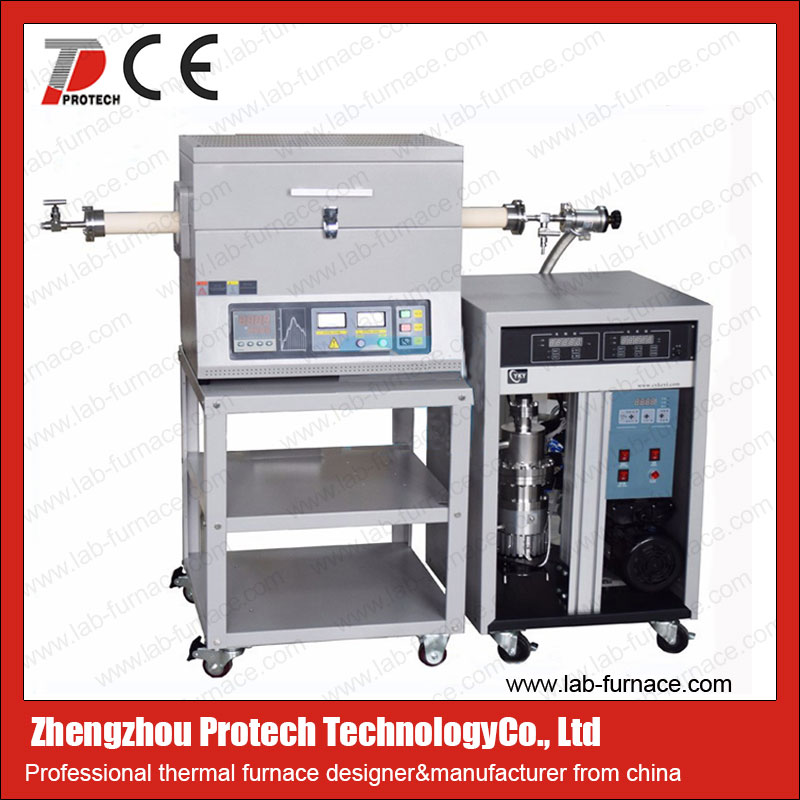

High vacuum tube furnace

High vacuum tube furnace

Model£ºHigh vacuum tube furnace

Description£ºHigh vacuum tube furnace use high purity alumina or quartz tube as furnace tube.Working temperature ranges from 800¡æ to 1600¡æ.The tube can be customized according to customers¡¯ need.The furnaces are safe and reliable,simple operation,high precision temperature control,good heat preservation,high uniformity furnace temperature can connect vacuum atmosphere,etc.It is widely used in colleges and universities,research institutes,industrial and mining enterprise and other experiments and small batch production.

Inquire Now

1.Features of High vacuum tube furnace:
(1). High vacuum tube furnace Operation Temperature: 1300¡æ ( 1400¡æ for short time).
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
(3). Heavy duty double layer structure with cooling fan. Lower temperature in outside case.
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
(5). Power control with 30 segments programmable.


We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Technical parameters of High vacuum tube furnace:

Chamber Size Φ50x300mm (2.0"x12")
Working Temperature 1300¡æ (continuous)
Maximum Temperature 1400¡æ
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15¡æ/min (suggestion: ≤10¡æ)
Temperature Accuracy +/-1¡æ
Heating Element SiC rod
Working Voltage AC 110-480V  50-60Hz (or according to your requirement)
Max. Power 2.5 KW
Net Weight 30 Kg
High vacuum tube furnace can be customized according to customers’requirements.

 Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
