25T Hydraulic Lamination Hot Press with Dual Temp. Controller & Water Cooling Jacket up to 250

ModelEQ-HP-88V-LD

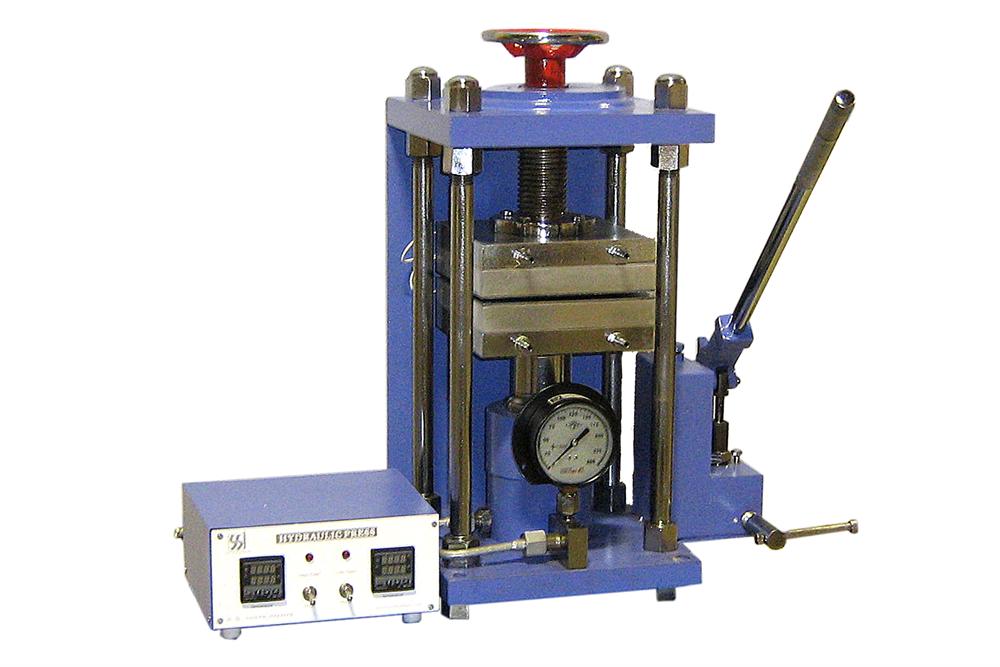

DescriptionHP-88V consists of a hydraulic press fitted with manually operated oil pump & two heated platens. The temperatures of the dual heated platens are controlled by two digital temperature controllers separately up to 250C. Specially designed heaters are fixed in the platens to provide required temperature. The upper platen is a fixed platen while the lower platen is mounted on a oil pressure pump operated manually. Water cooling jackets are installed with heating plate that allow heated plate get faster cooling. One pressure gauge (250 KN) is also mounted to monitor the pressure applied on the platens. It is an excellent tool to prepare polymer and ceramic samples.

Inquire Now

Name  25T Hydraulic Lamination Hot Press with Dual Temp. Controller & Water Cooling Jacket up to 250 - EQ-HP-88V-LD
Model  PT-EHP-25T
Max. Working Pressure 25 metric Tone ( 250 KN)
Pressure Gauge Measuring Accuracy is 1.25 KN
Heated Platen Area 200mm x 200mm (Note: surface of both platens are not perfectly flat; extra flatness can be requested at extra cost)
Max. Travel Distance (upper platen) 140mm
Max. Working Temperature 200°C continous with water cooling
250°C for less 30 minutes
Water Cooling Jacket
  • Two water cooling jacket are built on back of top and bottom heating plate separately with 1/4" water pipe connectors. Such a configuration allows you cool the sample as soon as the hot pressing process is completed.
  • Please consider to use one recircultion water chiller to save water and protect the environment (order separately by click picture below)
Temperature Control
  • Two digital controller installed in one box with one point control  and ayto-tune faction
  • Temperature accuracy ±1°C.
Power Requirement 110VAC or 220VAC (Please select the voltage in the option bar), 3000W max.
Note: 30Amps circuit breaker is required for 110V version while 20amps circuit breaker is required for 220V version.
Power Cord Power cord is included without the plug.
Shipping Size 48‘’(L) x 40''(W) x 44''(H)
Shipping Weight 375 lbs
Warranty
  • The pressing machine was quality inspected in USA, lifetime support is provided
  • One year limited standard warranty (Extended warranty is available upto 5 years at extra cost)

 Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
