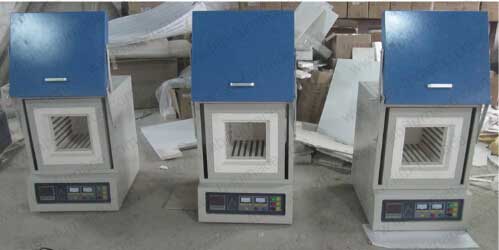

electric muffle furnace

electric muffle furnace

Model£ºPT-1400M

Description£ºThis series electric muffle furnace can be widely used in universities, research institutes,industrial and mining enterprises for high temperature sintering,materials sintering,composition analysis£¬quality testing and related heating treatment work.

Inquire Now

Features of electric muffle furnace :
1. Operation Temperature: 1300¡æ (1400¡æ for short time).
2. Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
3. Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
4. PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
5. Power control with 30 segments programmable.


We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!



Descriptions of electric muffle furnace:

Chamber Size 200 x 200 x 200 mm (8"x8"x8")
Working Temperature 1300¡æ (continuous)
Maximum Temperature 1400¡æ
Temperature Control 30 steps programmable and PID automatic control
Heating Rate 0~15¡æ/min (suggestion: ≤10¡æ)
Temperature Accuracy +/-1¡æ
Heating Element Silicon Carbide (SiC)
Working Voltage AC 220V, Single Phase, 60/50 Hz  (or according to your requirement)
Max. Power 5 KW
Outside Size 550 x 540 x 820 mm
Net Weight 100 Kg

Note: there are different chamber sizes for your choice.


 Transaction process


  After-sales Service


1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
