Bottom lift furnace

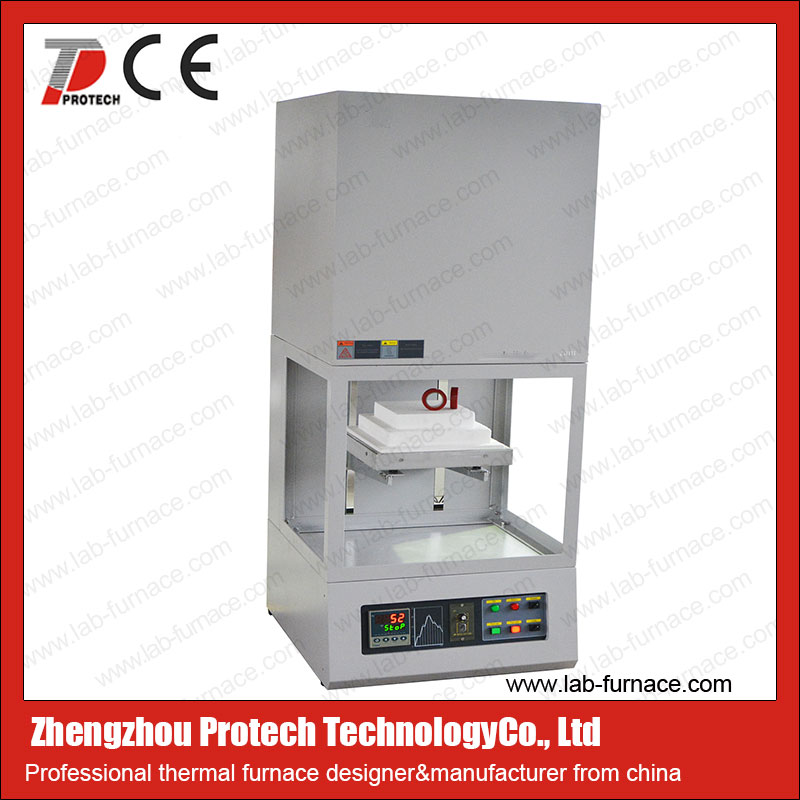

Bottom lift furnace


Description£ºBottom lift Furnace is capable of operating at temperatures up to 1200oC in air.The furnace utilizes 1200¡ãC resistance wire positioned on three sides of the internal chamber.The furnace utilizes an energy efficient insulation package consisting of graded ceramic-fiber, high temperature insulation.It is an ideal tool for materials annealing and sintering.

Inquire Now

Outstanding features of Bottom lift Furnace
Square furnace chamber
Auto-lift and auto down chamber
Scientific and reasonable product structure
Digital temperature control with +/- 1.C accuracy.

We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

Technical parameters of Bottom lift Furnace
Model PT-1200B
Limiting temperature 1200 °C  (< 2 hour)
Working temperature ≤1100 °C
Heating rate ≤20¡æ(suggestion:10¡æ/min)
Temperature accuracy +/- 1 °C
Temperature controller • PID automatic control and auto-tune function.
• 51 programmable segments for precise control.
• 51 programmable segments for precise control.
• Built in protection for over-heated and broken thermal couple
• Larger digital control panel (48 x 96 mm) for easy operation.
Chamber size 200x200x200mm
Heating element Super Fe-Cr-Al-Mo resistance wire
Thermal couple K Type
Working voltage AC 110-480V 50-60Hz
Rated power 6.5 KW
Warranty 12 month (exclusive wearing part)
 Bottom lift Furnace can be customized according to customers’requirements.

 Transaction process

  After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
