1700C Tube furnace

You are here£ºHome > Products > Tube furnace > 1700C Tube furnace >

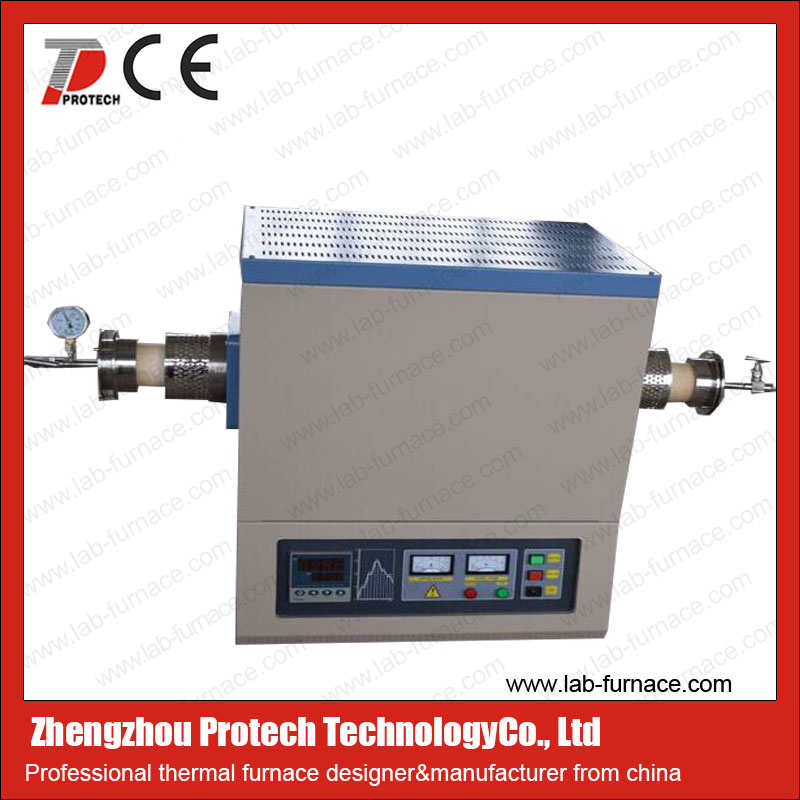

1700C tube furnace


Description£º1700C Tube furnace is widely used in various reaction temperature at 1600 or so CVD experimental; Also can be used in the vacuum sintering, vacuum atmosphere protection sintering, nano materials preparation, battery materials preparation and other research fields.

Inquire Now

1.Features of 1700C tube furnace :
(1). Operation Temperature: 1500¡æ (1600¡æ for short time).
(2). Maximum energy efficiency is achieved by surrounding the chamber with thermal-efficient alumina fiber ceramic insulation.
(3). Heavy duty double layer structure with cooling fan. Lower teperature in outside case.
(4). PID automatic control via current limiting phase angle fired the resistor, e.g. SCR(Silicon Controlled Rectifier).
(5). Power control with 30 segments programmable.


We have a wide range of different optional function furnace to meet different heating requirement, also we accept customer design furnace R&D working, please email us your specific requirement, we will recommend most reasonable choice for you, thanks!

2.Technical parameters of 1700C tube furnace :
Model PT-1700T
Display LED
Limiting temperature 1700¡æ
Working temperature ≤1600¡æ
Heating rate Suggestion 0~20¡æ/min
Temperature zone Single
Temperature accuracy ±1¡æ
Chamber size Φ80×1000£¨mm£©
Heated length 300mm
Heating element  MoSi2
Thermal couple B Type
Temperature control PID automatic control via SCR power control
Heating curves 30 steps programmable
Chamber material Alumina Fiber
Rated power 4.5 KW
Working voltage AC 110-480V  50-60Hz
Warranty 12 month (exclusive wearing part)
1700C tube furnace can be customized according to customers’requirements.

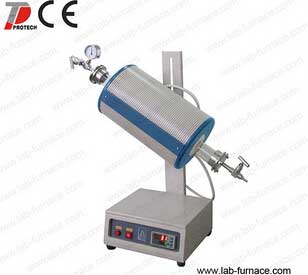

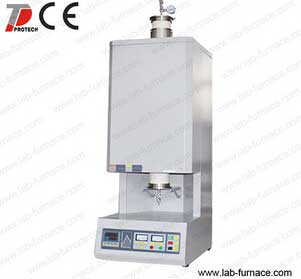

3.Related tube furnaces :



 Transaction process

  After-sales Service

1.We provide one year warranty for our equipment (Except the quick-wear part),Equipment damage or malfunction during the guarantee period due to equipment quality reasons, all be free maintenance.After the warranty expires, still offer lifetime and high quality service.

2.In case of failure in the process of equipment used, our company will make a deal as soon as possible, to ensure the normal operation of equipment.

3.Our company provide free equipment operation training and simple troubleshooting and maintenance training.

4.My company's technical staff can provide door-to-door service (product installation, debugging, maintenance, technical advice and instructions, etc.).

5.Our company provides transport services, packaging are carried out in accordance with the safety standard packing.Random complete technical data (user manual, maintenance manuals, relevant materials and accessories, random tools, etc.).

6.All the equipment has the CE certificate.
